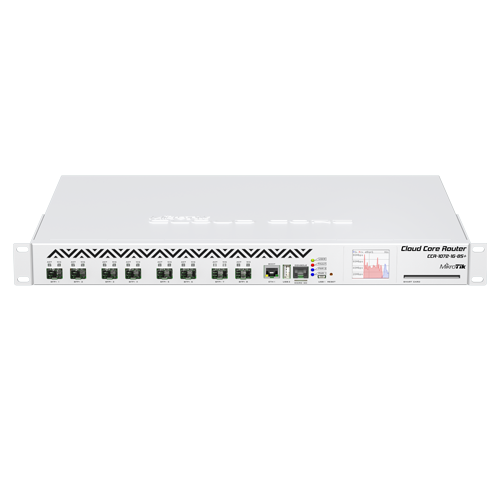

CCR1072-1G-8S+

1U rackmount, 1x Gigabit Ethernet, 8xSFP+ cages, LCD, 72 cores x 1GHz CPU, 16GB RAM, up to 120 million packets per second, 80Gbps throughput, RouterOS L6

DOWNLOAD DATASHEET ENQUIRY NOW

General Specifications

Specifications

Details
Product code	CCR1072-1G-8S+
Architecture	TILE
CPU	TLR4-07280
CPU core count	72
CPU nominal frequency	1 GHz
Dimensions	443 x 315 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	16 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-20°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$3350.00

Powering

Details
Number of AC inputs	2
AC input range	100-240
Max power consumption	125 W
Cooling type	4 fans

Ethernet

Details
10/100/1000 Ethernet ports	1

Fiber

Details
SFP+ ports	8

Peripherals

Details
Memory card type	microSD, 2x M.2
Memory Cards	3
Serial console port	RJ45
Number of USB ports	2
USB Power Reset	Yes
USB slot type	microUSB type AB; USB type A
Max USB current (A)	1
Smart card slot	Yes
Number of M.2 slots	2

Other

Details
CPU temperature monitor	Yes
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS

Test results

Ethernet test results

CCR1072-1G-8S+		Tile 72 Core (1000Mhz, DDR1333) Max possible throughput
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	98,801.0	50,586.1
Bridging	25 bridge filter rules	5,033.3	61,124.4	7,149.8	29,285.6	8,682.1	4,445.2
Routing	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	73,061.0	37,407.2
Routing	25 simple queues	6,502.0	78,960.3	10,980.3	44,975.3	11,368.2	5,820.5
Routing	25 ip filter rules	4,125.6	50,101.3	5,051.5	20,690.9	4,999.0	2,559.5

CCR1072-1G-8S+		Tile 72 Core (1000Mhz, DDR1600) Max possible throughput
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	98,873.5	50,623.2
Bridging	25 bridge filter rules	5,764.8	70,007.7	8,240.2	33,751.9	8,866.3	4,539.5
Routing	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	76,201.0	39,014.9
Routing	25 simple queues	6,502.0	78,960.3	11,073.5	45,357.1	11,444.4	5,859.5
Routing	25 ip filter rules	4,664.7	56,648.1	5,200.3	21,300.4	5,321.0	2,724.4

CCR1072-1G-8S+		Tile 72 Core (1200Mhz, DDR1333) Max possible throughput
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	119,047.6	60,952.4
Bridging	25 bridge filter rules	6,130.5	74,448.8	8,192.7	33,557.3	10,339.5	5,293.8
Routing	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	86,507.0	44,291.6
Routing	25 simple queues	6,502.0	78,960.3	12,370.4	50,669.2	13,474.2	6,898.8
Routing	25 ip filter rules	4,667.6	56,683.3	5,985.1	24,515.0	5,873.8	3,007.4

CCR1072-1G-8S+		Tile 72 Core (1200Mhz, DDR1600) Max possible throughput
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	119,047.6	60,952.4
Bridging	25 bridge filter rules	6,502.0	78,960.3	9,099.2	37,270.3	10,432.3	5,341.3
Routing	none (fast path)	6,502.0	78,960.3	18,790.0	76,963.8	94,668.4	48,470.2
Routing	25 simple queues	6,502.0	78,960.3	13,500.0	55,296.0	13,683.5	7,006.0
Routing	25 ip filter rules	5,247.6	63,726.9	6,125.5	25,090.0	6,104.0	3,125.2

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

CCR1072-1G-8S+		CCR1072-1G-8S+ IPsec throughput
Mode	Configuration	1400 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Single tunnel	AES-128-CBC + SHA1	112.5	1260.0	112.6	461.2	115.4	59.1
256 tunnels	AES-128-CBC + SHA1	970.8	10873.0	1096.5	4491.3	1190.5	609.5
256 tunnels	AES-128-CBC + SHA256	906.1	10148.3	1082.8	4435.1	1163.0	595.5
256 tunnels	AES-256-CBC + SHA1	904.4	10129.3	1051.0	4304.9	1190.5	609.5
256 tunnels	AES-256-CBC + SHA256	895.9	10034.1	1078.3	4416.7	1135.5	581.4

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
